Structure:Piston Cylinder
Power:Pneumatic
Body Material:Aluminum
Maximum Stroke:1000mm
Shaft Diameter:20-400mm
Model Number:MAL 32*50
Application:Truck
Color:Silver
Working Pressure:0.1-0.9 MPa
Certificate:ISO9001:2008
Material:Aluminium Alloy
Product name:ISO Standard Pneumatic Cylinders

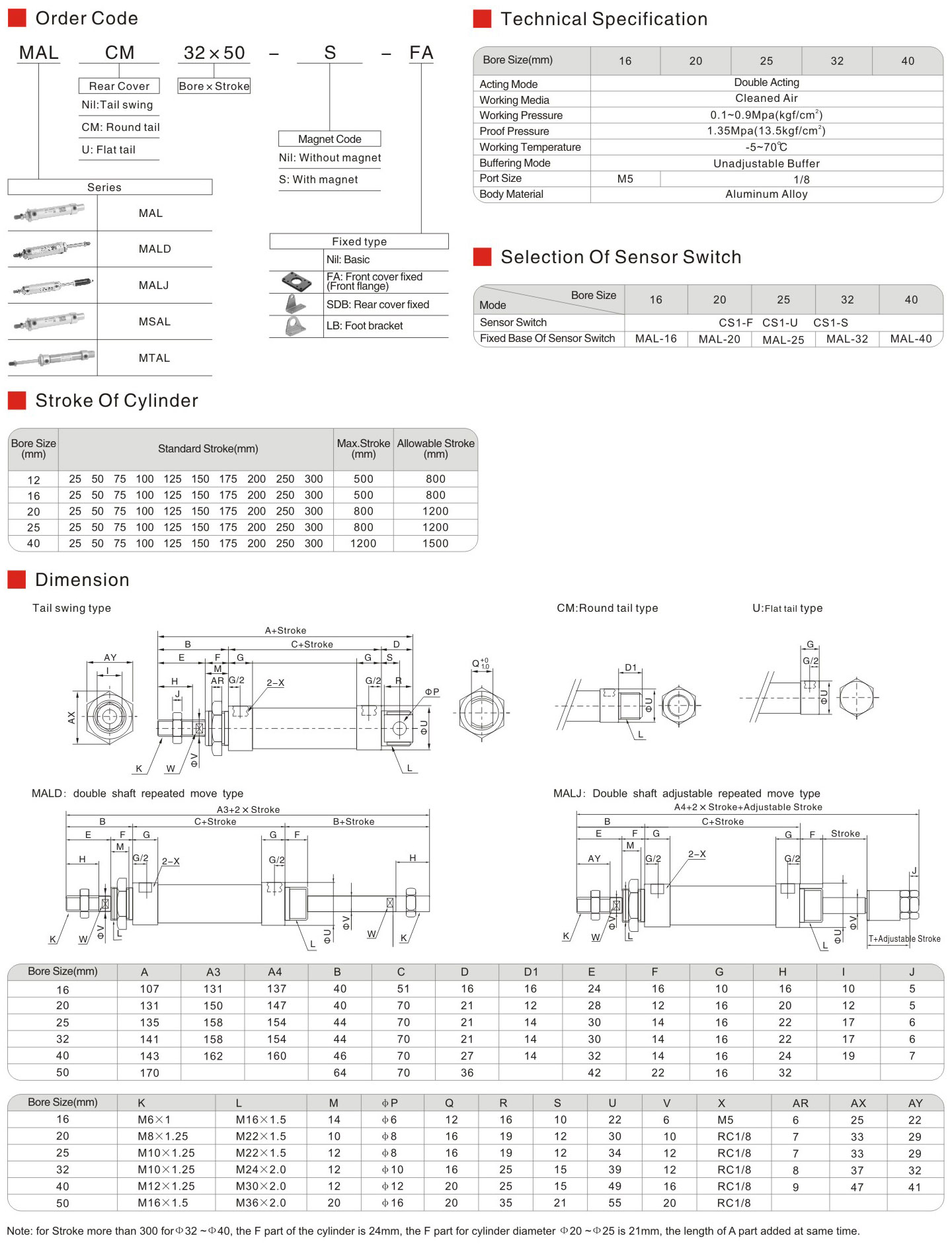

MAL Series Aluminum Alloy Mini Pneumatic Air Cylinder
1:AIRTAC TYPE standard pneumatic cylinder.
2: widely used in machinery.
3:Bore size from 16 to 40mm
4:Long service of lifespan
AIRTAC TYPE Standard Aluminum Alloy pneumatic cylinder.
Features:
1.Good replacement for AIRTAC cylinder.
2.Standard design,simple structure,low starting pressure,smooth motion.
3..Adjustable cushion on both cylinder end covers to make sure the cylinder works very smoothly,safely and with low noise.
4.Using self-lubricating bearing, the piston rod is lubrication free.
5.Precision grinding piston rod to guarantee long working lifetime.
6.Bore size:16mm,20mm,25mm,32mm,40mm.
7.Various back cover type:Fishtail,rounded,horizantal.
| Bore(mm) | 16 | 20 | 25 | 32 | 40 | |
| Motion Pattern | Double action or Single action | |||||
| Working Medium | Air | |||||
| Fixed Tyope | Normal Type: LB/FA/SDB Type | |||||
| Operating Pressure Range | 0.1-0.9MPa | |||||
| Ensured Pressure Resistance | 1.35MPa | |||||
| Operating Temperature Range | -5-70oC | |||||
| Operating Speed Range | 30-800mm/s | |||||
| Buffer Type | Standard Type | Anti-crash Cushion | ||||
| Damping Type | Adjustable Cushion | |||||
| Port Size | M5*0.8 | G 1/8″ | G 1/8″ | G 1/8″ | G 1/4″ | |
