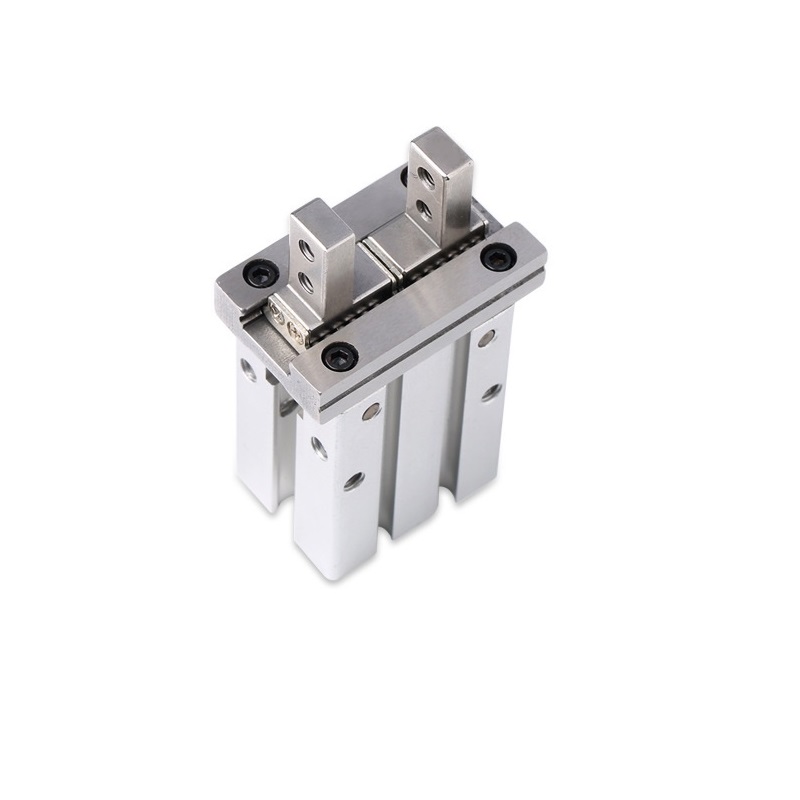

MH Series Parallel Style Air Pneumatic cylinder,Fábrica de cilindros neumáticos,Cilindro pneumático,
Пневматический цилиндр,กระบอกสูบนิวเมติก,Fabbrica di cilindri pneumatici
Jiangxi Yikai Electric specializes in designing and manufacture all kinds of pneumatic cylinder,solenoid valve,pneumatic fitting,Air treatment unit,Air hose.We can design many kinds of pneumatic cylinder according to customer requirement.Products are widely used in Automotive industry,electronic industry,food processing and packaging industry,textile industry and printing industry!
| Action | Model | Bore
Size (mm) |
Gripping force | Opening/Closing Stroke
(Both sides) (mm) |
Weight
(g) |
||
| Gripping force per finger Effective value (N) | |||||||
| External | Internal | ||||||
| Double
Acting |
MHZ2-6D | 6 | 3.3 | 6.1 | 4 | 27 | |
| MHZ2-10D(N) | 10 | 11 | 17 | 4 | 55 | ||
| MHZ2-16D(N) | 16 | 34 | 45 | 6 | 115 | ||
| MHZ2-20 D(N) | 20 | 42 | 66 | 10 | 35 | ||
| MHZ2-25 D(N) | 25 | 65 | 104 | 14 | 430 | ||
| MHZ2-32D | 32 | 158 | 193 | 22 | 715 | ||
| MHZ2-40D | 40 | 254 | 318 | 30 | 1275 | ||
| Single
Acting |
Normally
Open |
MHZ2-6S | 6 | 1.9 | – | 4 | 27 |
| MHZ2-10S(N) | 10 | 7.1 | 4 | 55 | |||
| MHZ2-16S(N) | 16 | 27 | 6 | 115 | |||
| MHZ2-20 S(N) | 20 | 33 | 10 | 240 | |||
| MHZ2-25 S(N) | 25 | 45 | 14 | 430 | |||
| MHZ2-32S | 32 | 131 | 22 | 760 | |||
| MHZ2-40S | 40 | 217 | 30 | 1370 | |||
| Normally
Closed |
MHZ2-6C | 6 | – | 3.7 | 4 | 27 | |
| MHZ2-10C(N) | 10 | 13 | 4 | 55 | |||
| MHZ2-16C(N) | 16 | 38 | 6 | 115 | |||
| MHZ2-20 C(N) | 20 | 57 | 10 | 240 | |||
| MHZ2-25 C(N) | 25 | 83 | 14 | 430 | |||
| MHZ2-32C | 32 | 161 | 22 | 760 | |||
| MHZ2-40C | 40 | 267 | 30 | 1370 | |||
